SMD1210-010
陸海SMD1210-010
| 型號 | Marking | Ihold@25℃(A) | Itrip@25℃(A) | Vmax(V) | Imax(A) | Pdtyp.(W) | Trip current(A) | Trip time(S) | Rimin(Ω) | R1max(Ω) | Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SMD1210-150 | αL | 1.50 | 3.00 | 6.0 | 100 | 0.6 | 8.0 | 0.50 | 0.030 | 0.110 |
 |
| SMD1210-110 | αH | 1.10 | 2.20 | 6.0 | 100 | 0.6 | 8.0 | 0.30 | 0.050 | 0.210 |
|
| SMD1210-075 | αG | 0.75 | 1.50 | 6.0 | 100 | 0.6 | 8.0 | 0.10 | 0.070 | 0.400 |
|
| SMD1210-050 | αF | 0.50 | 1.00 | 13.2 | 100 | 0.6 | 8.0 | 0.10 | 0.180 | 0.900 |
|
| SMD1210-035 | αD | 0.35 | 0.75 | 6.0 | 100 | 0.6 | 8.0 | 0.20 | 0.200 | 1.300 |
|
| SMD1210-020 | αC | 0.20 | 0.40 | 30.0 | 100 | 0.6 | 8.0 | 0.02 | 0.400 | 5.000 |
|

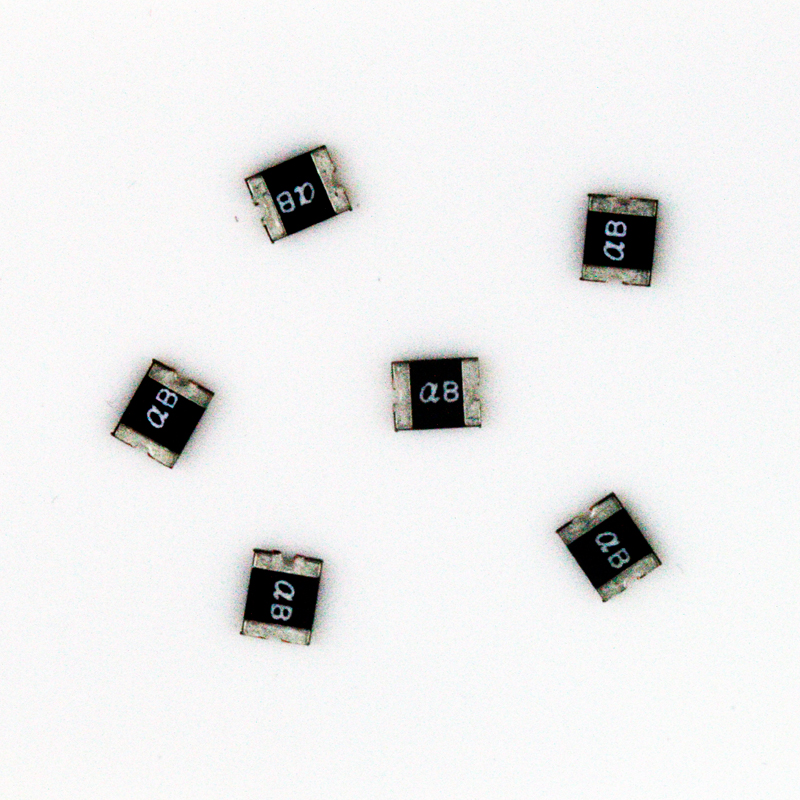

| SMD1210-010 | αB | 0.10 | 0.30 | 30.0 | 100 | 0.6 | 0.5 | 0.60 | 0.800 | 15.000 |
|
| SMD1210-005 | αA | 0.05 | 0.15 | 30.0 | 100 | 0.6 | 0.3 | 1.50 | 2.80 | 50.000 |
|
