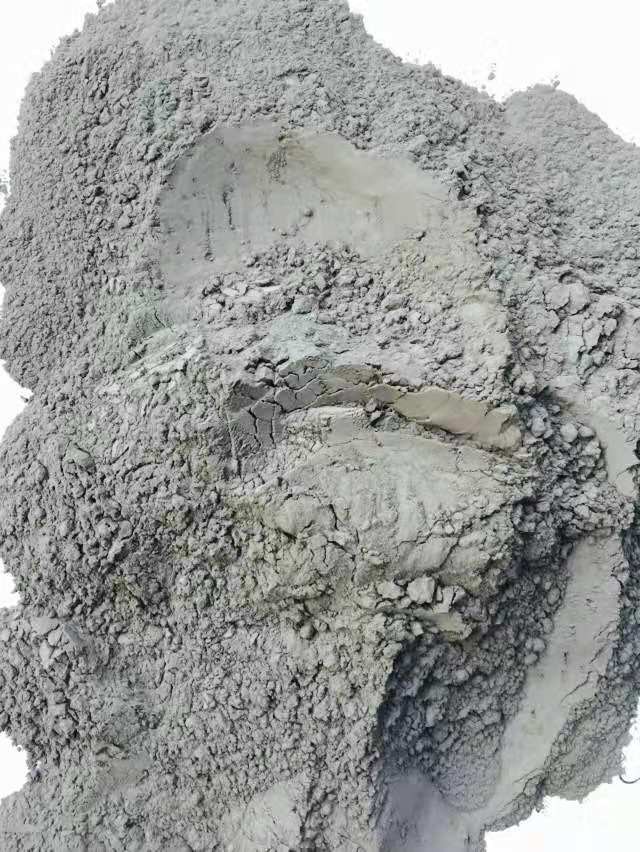

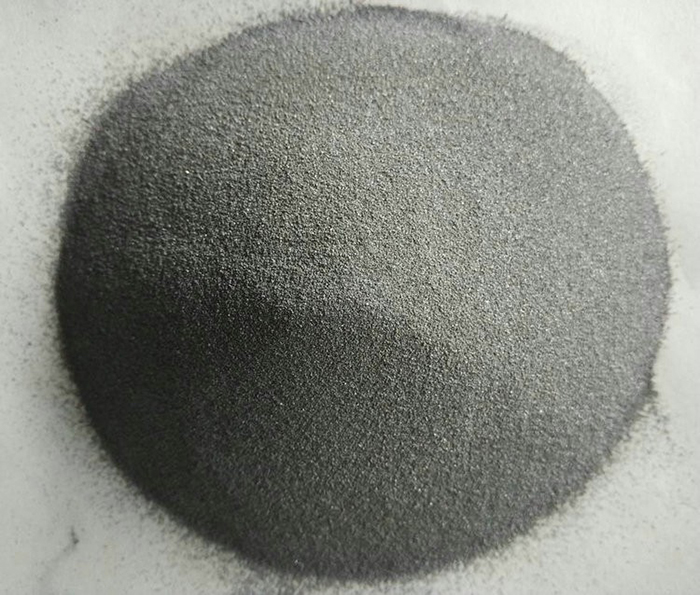

Mixed powder for diamond tools

name: Mixed powder for diamond tools
Classification: Mixed powder for diamond tools
Corporate name: Dada Alloy Co., Ltd
Time: 19/07/28
Click count：

Product details

The mixed powder used in diamond tools is different from the metal powder used in the production of powder metallurgy parts. It not only requires good process performance of the binder and appropriate mechanical properties after sintering, including appropriate hardness, toughness, and strict wear resistance (not the more wear-resistant the better, but also moderate wear resistance), but also has good affinity for diamond. These requirements increase the difficulty of selecting alloy elements.

model	component %				apparent density g/cm3	Average particle size D50
model	TFe	Mn	C	H2-loss	apparent density g/cm3	Average particle size D50
JG200	99.0 min	0.20max	0.03max	0.25max	2.3~2.6	40um
JG300	98.6min	0.20max	0.03max	0.40max	2.3~2.6	20um
JG04	98.5min	0.40max	0.03max	0.70max	1.0~1.5	4um

Type	Chemical elements %				Apparent density g/cm3	size D50
Type	TFe	Mn	C	H2-loss	Apparent density g/cm3	size D50
JG200	99.0 min	0.20max	0.03max	0.25max	2.3~2.6	40um
JG300	98.6min	0.20max	0.03max	0.40max	2.3~2.6	20um
JG04	98.5min	0.40max	0.03max	0.70max	1.0~1.5	4um
